Google Private Service Connect Connectivity

Google Cloud Private Service Connect allows you to open a path to Temporal without opening a public egress. It establishes a private connection between your Google Virtual Private Cloud (VPC) and Temporal Cloud. This one-way connection means Temporal cannot establish a connection back to your service. This is useful if normally you block traffic egress as part of your security protocols. If you use a private environment that does not allow external connectivity, you will remain isolated.

Namespaces with High Availability features and GCP Private Service Connect

Automatic failover via Temporal Cloud DNS is not currently supported with GCP Private Service Connect. If you use GCP Private Service Connect, you must manually update your workers to point to the active region's Private Service Connect endpoint when a failover occurs.

Requirements​

Your GCP Private Service Connect connection must be in the same region as your Temporal Cloud namespace. If using replication for High Availability, the PSC connection must be in the same region as one of the replicas.

Creating a Private Service Connect connection​

Set up Private Service Connect with Temporal Cloud with these steps:

  1. Open the Google Cloud console

  2. Navigate to Network Services, then Private Service Connect. If you haven't used Network Services recently, you might have to find it by clicking on View All Products at the bottom of the left sidebar.

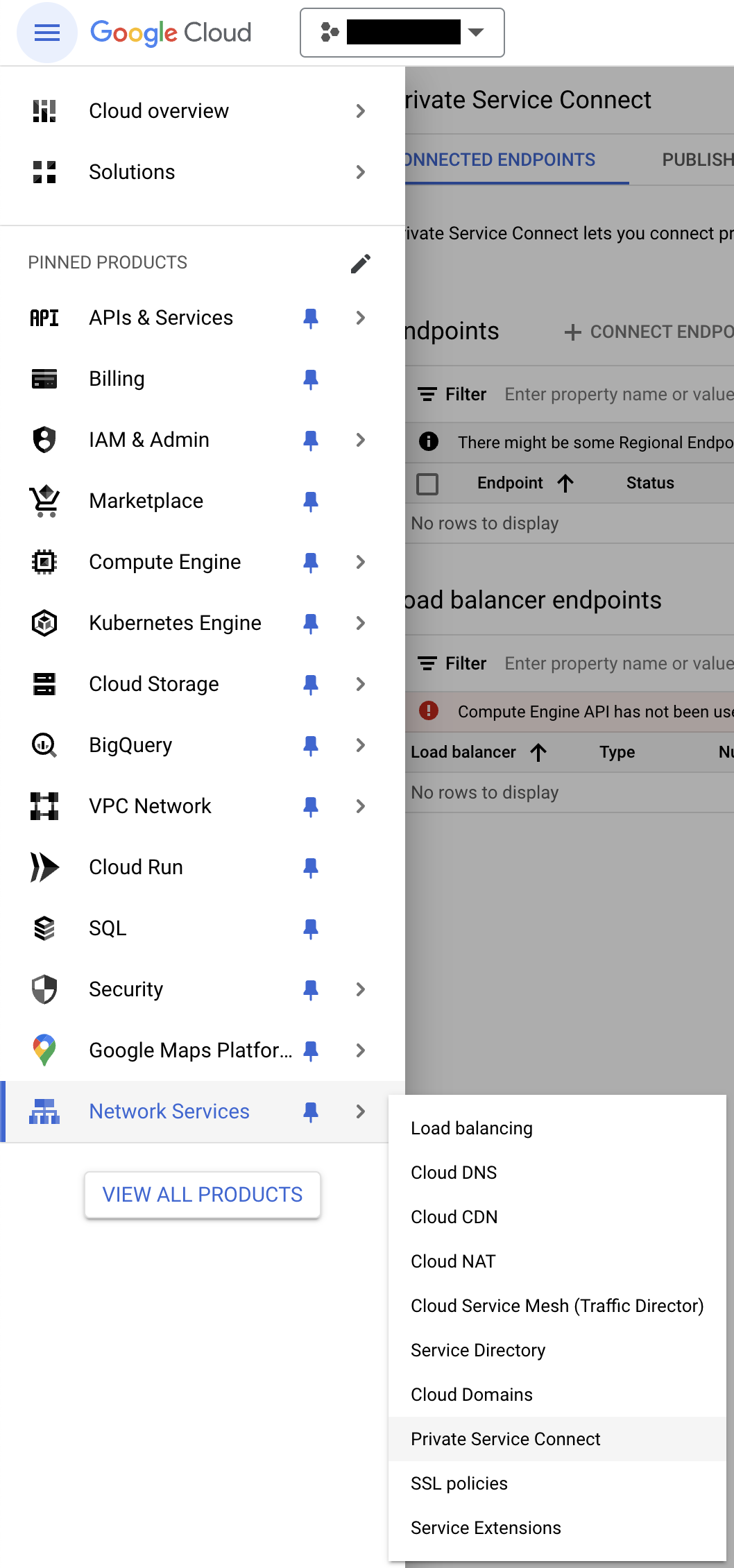

    GCP console showing Network Services, and the View All Products button

  3. Go to the Endpoints section. Click on Connect endpoint.

    GCP console showing the endpoints, and the Connect endpoint button

  4. Under Target, select Published service, this will change the contents of the form to allow you to fill the rest as described below

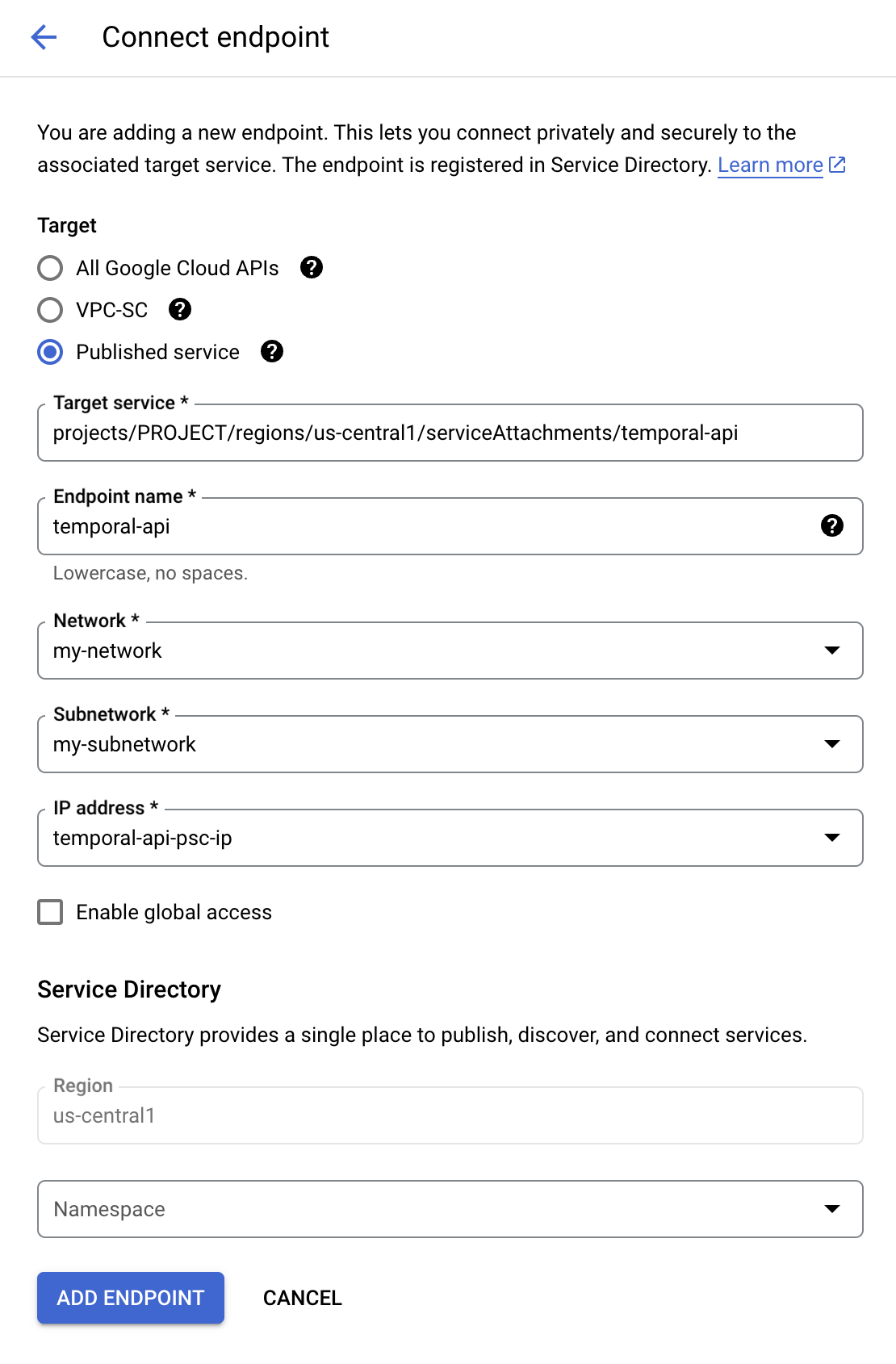

    GCP console showing the endpoints, and the Connect endpoint button

  • For Target service, fill in the Service name with the Private Service Connect Service Name for the region you’re trying to connect to:
tip

GCP Private Service Connect services are regional. Individual Namespaces do not use separate services.

RegionPrivate Service Connect Service Name
asia-south1projects/prod-d5spc2sfeshws33bg33vwdef7/regions/asia-south1/serviceAttachments/pl-7w7tw
europe-west3projects/prod-kwy7d4faxp6qgrgd9x94du36g/regions/europe-west3/serviceAttachments/pl-acgsh
us-central1projects/prod-d9ch6v2ybver8d2a8fyf7qru9/regions/us-central1/serviceAttachments/pl-5xzng
us-east4projects/prod-y399cvr9c2b43es2w3q3e4gvw/regions/us-east4/serviceAttachments/pl-8awsy
us-west1projects/prod-rbe76zxxzydz4cbdz2xt5b59q/regions/us-west1/serviceAttachments/pl-94w0x
  • For Endpoint name, enter a unique identifier to use for this endpoint. It could be for instance temporal-api or temporal-api-<namespace> if you want a different endpoint per namespace.
  • For Network and Subnetwork, choose the network and subnetwork where you want to publish your endpoint.
  • For IP address, click the dropdown and select Create IP address to create an internal IP from your subnet dedicated to the endpoint. Select this IP.
  • Check Enable global access if you intend to connect the endpoint to virtual machines outside of the selected region. We recommend regional connectivity instead of global access, as it can be better in terms of latency for your workers. Note: this requires the network routing mode to be set to GLOBAL.

  1. Click the Add endpoint button at the bottom of the screen.

  2. Once the status is "Accepted", the GCP Private Service Connect endpoint is ready for use.

  • Take note of the IP address that has been assigned to your endpoint, as it will be used to connect to Temporal Cloud.
caution

You still need to set up private DNS or override client configuration for your clients to actually use the new Private Service Connect connection to connect to Temporal Cloud.

See configuring private DNS for GCP Private Service Connect

Configuring Private DNS for GCP Private Service Connect​

Why configure private DNS?​

When you connect to Temporal Cloud through GCP Private Service Connect you normally must:

  1. Point your SDKs/Workers at the Private Service Connect endpoint IP address and
  2. Override the Server Name Indicator (SNI) so that the TLS handshake still presents the public Temporal Cloud hostname (e.g., my-namespace.my-account.tmprl.cloud).

By creating a private Cloud DNS zone (PZ) that maps the public TemporalC Cloud hostname (or the region hostname) directly to the PSC endpoint IP address, you can:

  • Keep using the standard Temporal Cloud hostnames in code and configuration.
  • Eliminate the need to set a custom SNI override.
  • Make future endpoint rotations transparent—only the DNS record changes.

This approach is optional; Temporal Cloud works without it. It simply streamlines configuration and operations. If you cannot use private DNS, refer to our guide for updating the server and TLS settings on your clients.

Prerequisites​

RequirementNotes
Google Cloud VPC Network with DNS enabledPSC endpoints and the DNS zone must live in (or be attached to) the same network.
Private Service Connect endpoint for Temporal CloudCreate an endpoint and reserve an internal IP in the namespace region
Cloud DNS API enabled and roles/dns.admin permissionsNeeded to create private zones and records.
Namespace detailsDetermines which hostname pattern you override (table below).

Choose the override domain and endpoint​

Temporal Cloud setupUse this PHZ domainExample
Single-region namespace with mTLS auth<account>.tmprl.cloudpayments.abcde.tmprl.cloud ↔ X.X.X.X
Multi-region namespace or API-key authregion.tmprl.cloudaws-us-east-1.region.tmprl.cloud ↔ X.X.X.X

Step-by-step instructions​

1. Collect your PSC endpoint IP address​

# List the forwarding rule you created for the endpoint
gcloud compute forwarding-rules list \
  --filter="NAME:<endpoint-name>" \
  --format="value(IP_ADDRESS)"
# Example output: 10.1.2.3

Save the internal IP -- you will point the A record at it.

2. Create a Cloud DNS private zone​

  1. Open Network Services → Cloud DNS → Create zone.
  2. Select zone type Private.
  3. Enter a Zone name (e.g., temporal-cloud).
  4. Enter a DNS name based on the table above (e.g., payments.abcde.tmprl.cloud or aws-us-east-1.region.tmprl.cloud).
  5. Select Add networks and choose the Project and Network that contains your PSC endpoint.
  6. Click Create.

3. Add an A record​

Inside the new zone, add a standard A record:

FieldValue
DNS namethe namespace endpoint (e.g. payments.abcde.tmprl.cloud)
Resource record typeA
TTL60s is typical, but you can adjust as needed.
IPv4 Addressthe internal IP address of your PSC endpoint (e.g. 10.1.2.3)

4. Verify DNS resolution from inside the Network​

dig payments.abcde.tmprl.cloud

If the hostname resolves to the PSC endpoint IP address from a VM in the bound network, the override is working.

Updating your workers/clients​

With private DNS in place, configure your SDKs exactly as the public-internet examples show (filling in your own namespace):

clientOptions := client.Options{
    HostPort: "payments.abcde.tmprl.cloud:7233",
    Namespace: "payments",
    // No TLS SNI override needed
}

The DNS resolver inside your network returns the private endpoint IP address, while TLS still validates the original hostname—simplifying both code and certificate management.

Available GCP regions, PSC endpoints, and DNS record overrides​

The following table lists the available Temporal regions, PrivateLink endpoints, and regional endpoints used for DNS record overrides:

North America - Iowa (us-central1)​

  • Cloud API Code: gcp-us-central1
  • Regional Endpoint: gcp-us-central1.region.tmprl.cloud
  • Private Service Connect Service Attachment URI: projects/prod-d9ch6v2ybver8d2a8fyf7qru9/regions/us-central1/serviceAttachments/pl-5xzng
  • Same Region Replication: Not Available
  • Multi-Region Replication:
    • gcp-us-west1
    • gcp-us-east4
  • Multi-Cloud Replication:
    • aws-ca-central-1
    • aws-us-east-1
    • aws-us-east-2
    • aws-us-west-2

North America - Oregon (us-west1)​

  • Cloud API Code: gcp-us-west1
  • Regional Endpoint: gcp-us-west1.region.tmprl.cloud
  • Private Service Connect Service Attachment URI: projects/prod-rbe76zxxzydz4cbdz2xt5b59q/regions/us-west1/serviceAttachments/pl-94w0x
  • Same Region Replication: Not Available
  • Multi-Region Replication:
    • gcp-us-central1
    • gcp-us-east4
  • Multi-Cloud Replication:
    • aws-ca-central-1
    • aws-us-east-1
    • aws-us-east-2
    • aws-us-west-2

North America - Northern Virginia (us-east4)​

  • Cloud API Code: gcp-us-east4
  • Regional Endpoint: gcp-us-east4.region.tmprl.cloud
  • Private Service Connect Service Attachment URI: projects/prod-y399cvr9c2b43es2w3q3e4gvw/regions/us-east4/serviceAttachments/pl-8awsy
  • Same Region Replication: Not Available
  • Multi-Region Replication:
    • gcp-us-central1
    • gcp-us-west1
  • Multi-Cloud Replication:
    • aws-ca-central-1
    • aws-us-east-1
    • aws-us-east-2
    • aws-us-west-2

Europe - Frankfurt (europe-west3)​

  • Cloud API Code: gcp-europe-west3
  • Regional Endpoint: gcp-europe-west3.region.tmprl.cloud
  • Private Service Connect Service Attachment URI: projects/prod-kwy7d4faxp6qgrgd9x94du36g/regions/europe-west3/serviceAttachments/pl-acgsh
  • Same Region Replication: Not Available
  • Multi-Region Replication:
    • None
  • Multi-Cloud Replication:
    • aws-eu-central-1
    • aws-eu-west-1
    • aws-eu-west-2

Asia Pacific - Mumbai (asia-south1)​

  • Cloud API Code: gcp-asia-south1
  • Regional Endpoint: gcp-asia-south1.region.tmprl.cloud
  • Private Service Connect Service Attachment URI: projects/prod-d5spc2sfeshws33bg33vwdef7/regions/asia-south1/serviceAttachments/pl-7w7tw
  • Same Region Replication: Not Available
  • Multi-Region Replication:
    • None
  • Multi-Cloud Replication:
    • aws-ap-northeast-1
    • aws-ap-northeast-2
    • aws-ap-south-1
    • aws-ap-south-2
    • aws-ap-southeast-1
    • aws-ap-southeast-2
